    Globe Valves

    Home > Products > Globe Valves

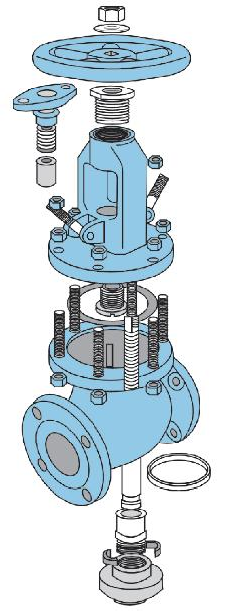

    Globe valves are primarily used as control valves where throttling or both throttling and shut-off are required. Globe valves can also be used for on-off service; however, because of the design, pressure drop becomes inherent. This is generally confined to on-off applications where the valve is normally closed and pressure drop is not important when the valve is open. Globe valves are uni-directional valves and normal applications will find the globe valve with the flow and pressure under the disc.

    Manufacturing Standards

    General Design : BS 1873 / API 600 / API 603

    Face To Face : ASME/ANSI B16.10

    Flange End : ASME/ANSI B16.5 & B16.47

    Butt Weld End : ASME/ANSI B16.25

    Pressure Rating : ASME/ANSI B16.34

    Fire Safe Design : API 6FA

    Inspection & Test : API 598 / API 6D

    Feature : Bolted Bonnet, Outside Screw & Yoke, Rising Stem,Flexible Wedge

    Disc

    The valve is normally supplied with the conical plug type disc. The disc rotates freely on the stem and incorporates a differential angle form that on the seat ring. This design provides the maximum assurance of shut off, is less likely to stick in the body seat, and is considered the simplest design for field repair.

    Back Seating Design

    All our globe valves have back seating design. When the globe valve is at fully open position the back seat can seal against the stem.

    Packing

    The stem packing is designed and arranged to ensure a maximum seal along the stem during operation or while at position thus allowing for a greater reduction in fugitive emissions. Our standard packings are made of graphite.

    End Connections

    Our valves standard end connections are available:

    - Flange end type with Raised Face (RF), Flat Face (FF) or Ring Type Joint (RTJ) that conform to ANSI B16.5. B16.25.

    - Butt welding ends (BW) that conform to ANSI b16.25.

    - All face-to-face / end-to-end dimensions that conform to ANSI B16.10. according to customer’s requirements.

    Other special end connections can be supply according to customers requirements.

    Operator

    Standard valve come in manual operation. Gate operation can be installed in valves if required. Other accessories such as actuator, chainweels, locking device and many others options are also available to meet customer requirements.
